Capable of up to 8 cylinders sequential or 16 cylinders wasted-spark
High-energy inductive ignition system
Supports camshaft / crankshaft engine position sensors of either the Hall Effect or variable reluctance type
Fixed timing with in-field global trim capability as well as two variable timing maps based on engine speed and load
AFR200 Series - Fuel and Ignition Management System (FIMS)
Optimal Closed Loop Air-Fuel Ratio and Delivery Control
Built-In Engine Speed Governor
Engine Sensor, Data Monitoring and Diagnostic Capability
Inputs and Outputs
12 and 24 VDC Compatible
CAN / Serial Communication
Easy Configuration and Customization Using GAC SmartVU Software
High Reliability & Durability

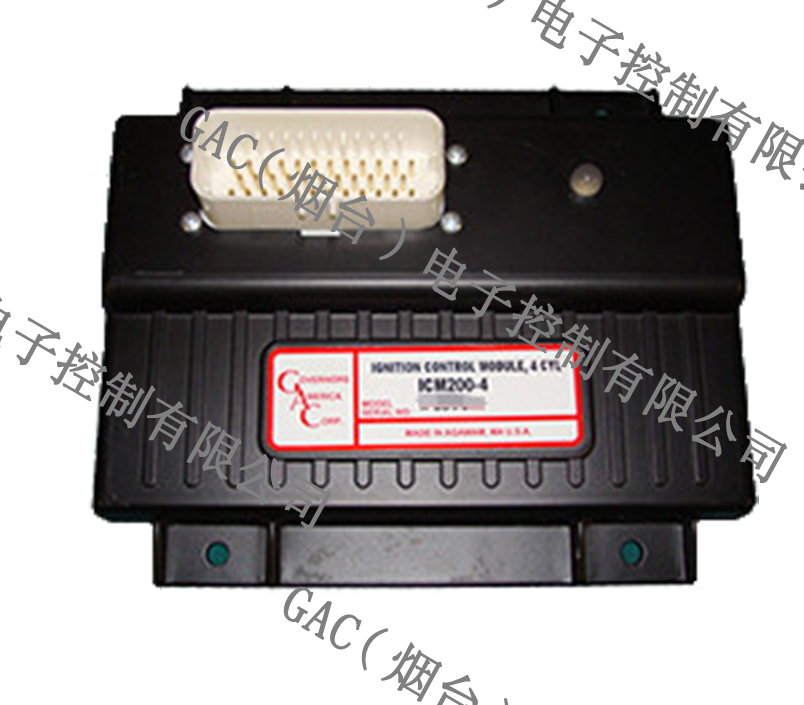

The Air Fuel Ratio (AFR) 200 series controller is part of the GAC comprehensive fuel management system for gaseous-fueled, spark-ignited engines ranging from 1L to 13L+. The AFR200 series controllers when used in conjunction with the ICM200 (Ignition Control Module) offers a complete Fuel and Ignition Management System (FIMS) referred to as the FIMS500 system. Each of these controllers has the ability to work independently of the other in the event of a failure.
Spark Plugs & Wires
SPG100-001 Iridium Tip Spark Plug, CNG
SPW100 Single Ignition Wire Lead, Performance
Ignition Coils
CL602 Single Output, Sequential Firing
CL603 Dual Output, Wasted-Spark Firing
Timing Trigger Wheels
GR104 24-1, 68mm, Trigger Wheel
Engine Position Sensors
SCI100 Variable Reluctance / 90° Connector
SCI101 Variable Reluctance / Straight Connector
SCI102 Hall Effect / Pigtail Connector
SCI103 Hall Effect / 90° Connector
