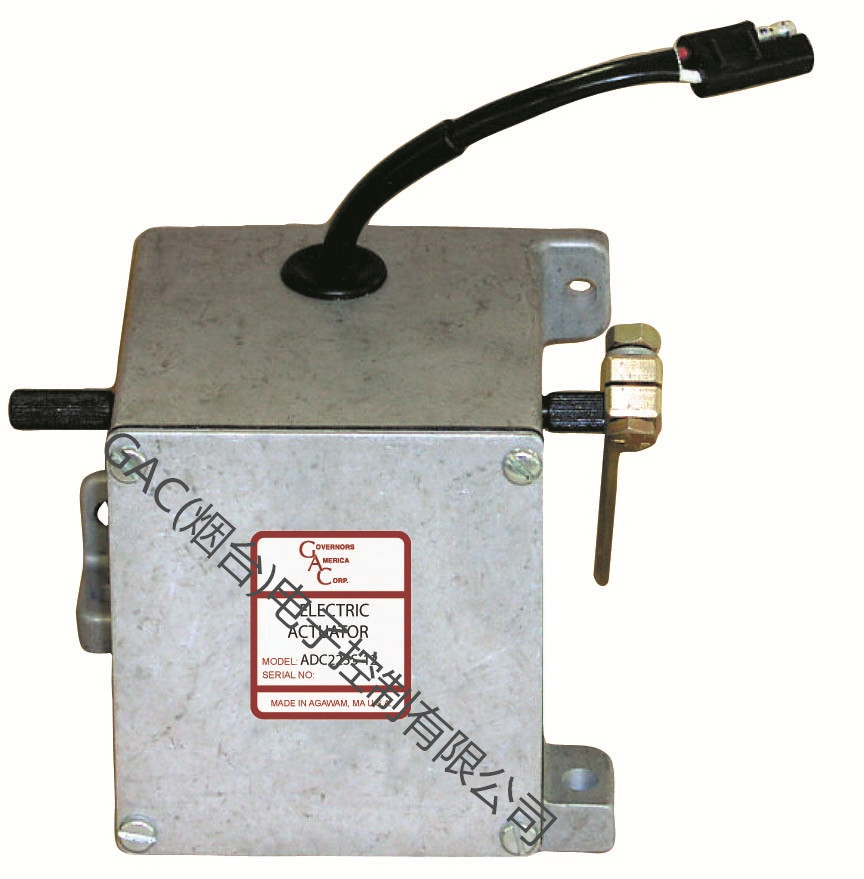

ADC225GS-12/24

12 or 24VDC Commercial Connector简易接头 Serrated Shaft花齿轴 Lesser rate return spring“软”弹簧
​The 225 Series electric actuator is a rotary output, linear torque, proportional servo. This electromechanical actuator is typically used as an engine fuel control positioning device. An internal spring provides fail safe operation by forcing the actuator to the fuel shut off position when the actuator is de-energized. This design combines fast operation, multi voltage usage, wider rotation angles, and proven reliability. The actuator can operate directly from 12 and 24 volt battery supplies. The speed of operation of the actuator is typically faster than competitive units, thus it provides more stable and rapid response to transient conditions. Applications include fuel injection pumps, with or without mechanical governors, rotary type pumps, and medium sized gaseous fueled engines. The 25 degrees of rotation expands the application to a wider variety of engines.

资料下载:
\Installation Manual

\Sales Brochure
    CH1203 12' Harness - Straight Connector (MIL)
    CH1210 12' Harness - 90º Connector (MIL)
    CH1212 30' Harness - Straight Connector
    CH1215 6' Actuator Mating Half - Packard Connector
    EC1000 Mating Connector - Straight - MIL
    EC1010 Mating Connector - 90° MIL
    EC1300 Mating Connector - Packard
    LE1400-1 4.3" - 3/16" Holes / Serrated Shaft
    LE1400-2 4.3" - 1/4" Holes / Serrated Shaft
    LE1400-4 3.3" - 1/4" Holes / Smooth Shaft
    LE1500-1 4.3" - 3/16" Holes / Smooth Shaft
    LE1500-2 4.3" - 1/4" Holes / Smooth Shaft
